| Lugar de origen: | Porcelana |
| Nombre de la marca: | RUIDA |
| Certificación: | CE certificate |
| Número de modelo: | RD6445G |
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | 0-400USD |
| Detalles de empaquetado: | Paquete protector con cartón. |
| Tiempo de entrega: | 3 días laborables |
| Condiciones de pago: | Por T/T, Western Union |
| Capacidad de la fuente: | 0-5000 juegos/mes |
| Expresar: | DHL, Fedex, TNT, UPS, SF, etc. |
| Tipo de controlador: | Sistema de control CNC DSP | Interfaz USB: | Con |
|---|---|---|---|
| Software: | Ruida V8 | Soporte de eje: | control de 4 ejes |
| rango: | 1 año |

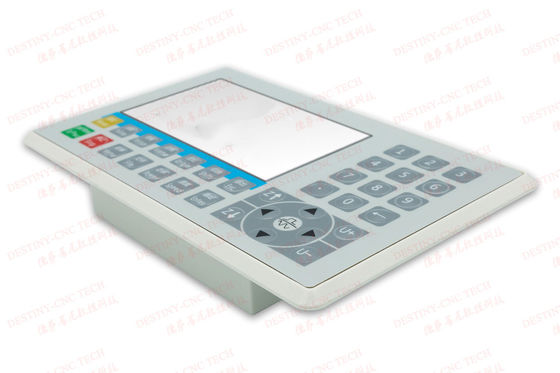

RDC6445G system is the latest generation of laser engraving / cutting control system developed by Ruida Technology. The control system has better hardware stability and better resistance to high voltage and static electricity. The human-machine operating system based on the 5-inch color screen has a more friendly operation interface and more powerful functions. The controller includes more perfect.

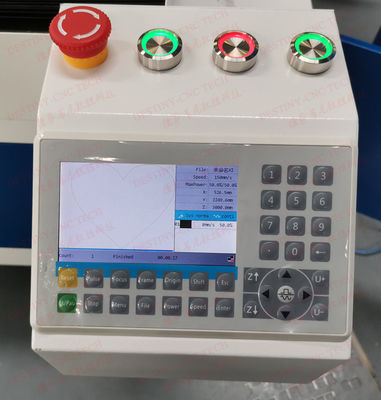

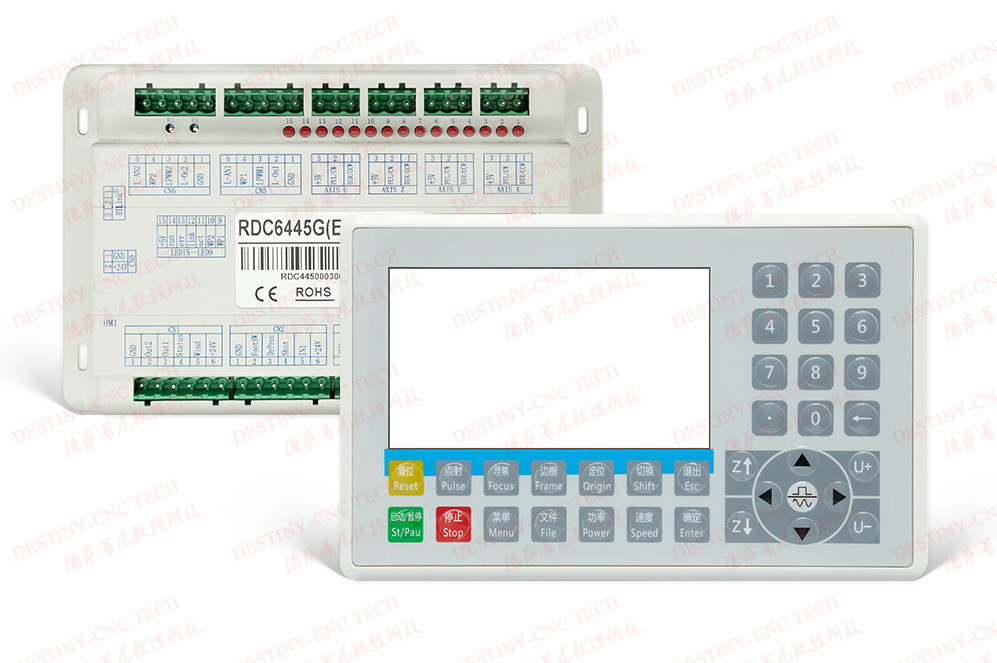

RDC6445G controller
Technical Parameters:
1. 4-way motor interface, output maximum 400KHZ frequency; drive capacity 20mA, common anode interface;
2. On-board 128M non-releasable memory;
3. USB maximum transfer rate is 12M, the longest distance is 5 meters;
4. The maximum transmission rate of the network cable is 100M, and the maximum transmission distance is 200M;
5. Linear / circular / B-spline interpolation accuracy +/- 0.5 pulse;
6. 4 general-purpose opto-isolated OC gate outputs, with a maximum driving capacity of 300mA (with freewheel protection), can directly drive 24V / 5V DC relays
7. 4 universal photoelectric isolation inputs, compatible with 5V / 12V / 24V logic level;
Function description:
1. Support up to 4 servo / stepper motor control;
2. Supports one extended serial port, which can communicate with EPLC-400, wireless handheld devices (BWK201R, BWK301R), and other devices with RS232 standard interface;
3. Support 4 OC gate outputs, can directly drive 5V / 24 relay;
4. Support mobile APP;
5. Support dual-head electric mutual shift control and super-format split cutting processing;
6. Support dual-head asynchronous processing;
7. Support large format vision, mark point visual cutting and projection cutting and other processing methods;
