Laser engraving&cutting machine control system newest RDC6445G CO2 laser control system 4 axis laser control card &panel

MOQ:	1 juego
Precio:	0-400 USD
Standard Packaging:	Paquete protector con cartón.
Delivery Period:	3 días laborables
Payment Method:	Por T/T, Western Union
Supply Capacity:	0-5000 juegos/mes

Información detallada

Product Description

Información detallada

Lugar de origen

Porcelana

Nombre de la marca

RUIDA

Certificación

CE certificate

Número de modelo

RDC6445G

Tipo de controlador:

Sistema de control CNC DSP

Interfaz USB:

Software:

RUIDA V8 Inglés

Garantía:

1 año

Partes totales:

Tarjeta de Control y panel de Control y cables de señal USB y cables electrónicos

Product Description

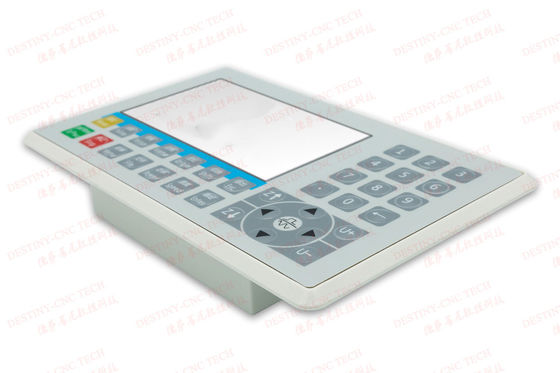

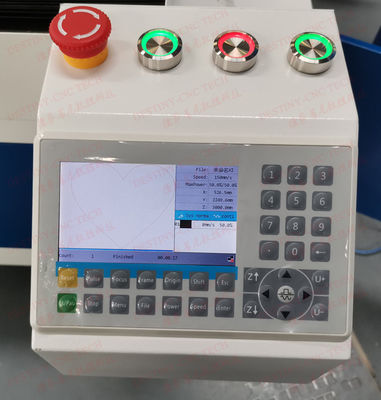

RDC6445G system is the latest generation of laser engraving / cutting control system developed by Ruida Technology. The control system has better hardware stability and better resistance to high voltage and static electricity. The human-machine operating system based on the 5-inch color screen has a more friendly operation interface and more powerful functions. The controller includes more perfect.

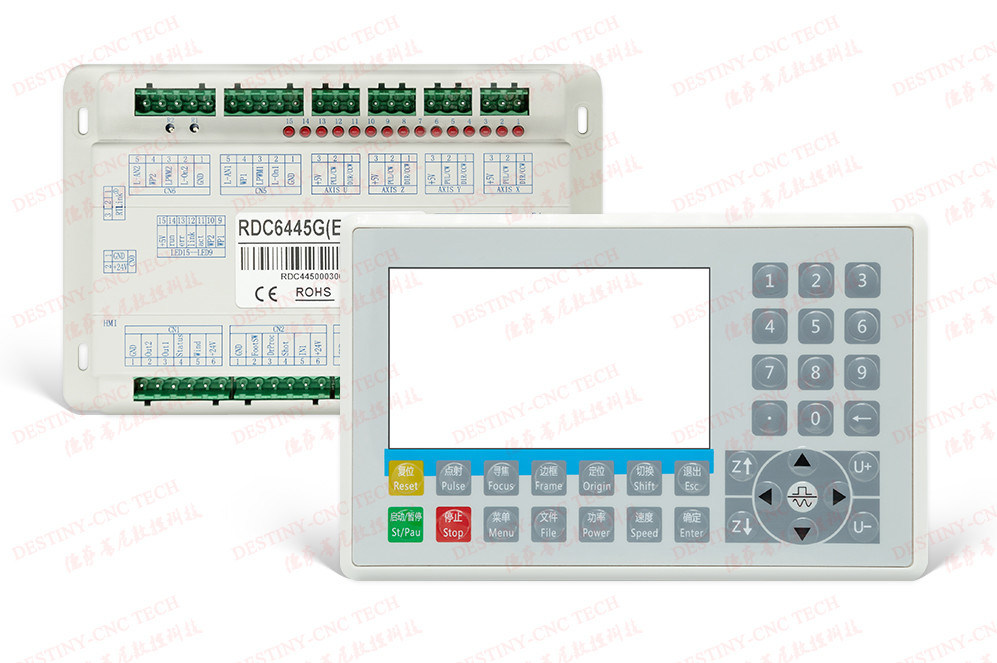

Laser engraving&cutting machine control system newest RDC6445G CO2 laser control system 4 axis laser control card &panel 0

Laser engraving&cutting machine control system newest RDC6445G CO2 laser control system 4 axis laser control card &panel 1

Laser engraving&cutting machine control system newest RDC6445G CO2 laser control system 4 axis laser control card &panel 2

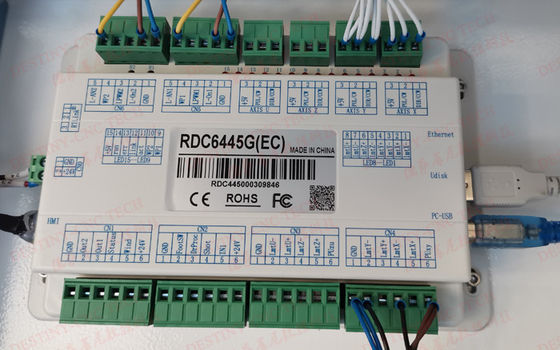

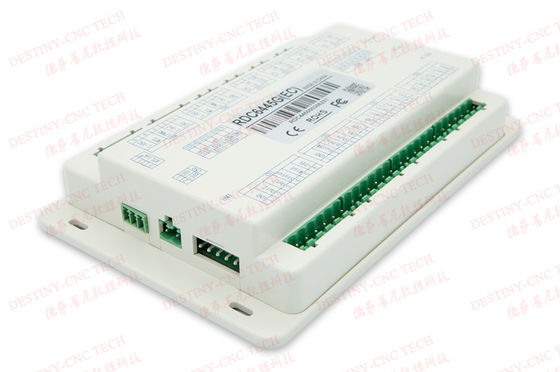

RDC6445G controller

Technical Parameters:

1. 4-way motor interface, output maximum 400KHZ frequency; drive capacity 20mA, common anode interface;

2. On-board 128M non-releasable memory;

3. USB maximum transfer rate is 12M, the longest distance is 5 meters;

4. The maximum transmission rate of the network cable is 100M, and the maximum transmission distance is 200M;

5. Linear / circular / B-spline interpolation accuracy +/- 0.5 pulse;

6. 4 general-purpose opto-isolated OC gate outputs, with a maximum driving capacity of 300mA (with freewheel protection), can directly drive 24V / 5V DC relays

7. 4 universal photoelectric isolation inputs, compatible with 5V / 12V / 24V logic level;

Function description:

1. Support up to 4 servo / stepper motor control;

2. Supports one extended serial port, which can communicate with EPLC-400, wireless handheld devices (BWK201R, BWK301R), and other devices with RS232 standard interface;

3. Support 4 OC gate outputs, can directly drive 5V / 24 relay;

4. Support mobile APP;

5. Support dual-head electric mutual shift control and super-format split cutting processing;

6. Support dual-head asynchronous processing;

7. Support large format vision, mark point visual cutting and projection cutting and other processing methods;

Whatsapp: 0086-18769963716 Skype: destinytrading Contacts : Legend Wu / Sales Director

If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
