| Lugar de origen: | ciudad de linyi, china |
| Nombre de la marca: | DESTINY-TECH |
| Certificación: | CE certificate 2 yeas warranty |
| Número de modelo: | DT-6000/8000 |
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | 0-140000USD |
| Detalles de empaquetado: | Caja de madera estándar CE |
| Tiempo de entrega: | 40 días de trabajo |
| Condiciones de pago: | Avance de T/T |
| Capacidad de la fuente: | 200 sistemas/mes |
| Tipo de láser: | Dispositivo del laser de la fibra | Tipo de enfriamiento: | Sistema de refrigeración por aire y enfriador de agua. |
|---|---|---|---|
| potencia del láser: | Láser de fibra Raycus o IPG marca 500W /800W | Área de trabajo: | Tubería metálica de 6m u 8m |
| Tipo de gas: | Oxígeno o Hidrógeno | Sistema de transmisión: | Sistema de transferencia automática para tubería metálica. |
| Motor y conductores: | Servomotor y controladores Panasonic de Japón | Garantía: | 1 año para toda la máquina |
| tipo del material del metal: | Tubos metálicos cuadrados y redondos, láminas SS, CS, etc. |
DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

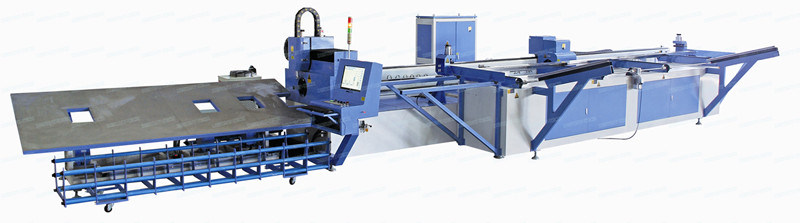

DT- 6000/8000 Fiber 500w Automatic 6m/8m metal pipe laser cutting machine
DT-6000/8000 is independently researched, this machine can auto-loading, auto-feeding and auto-cutting; it also can automatically collecting and the finished cutting tube and waste. Machine is equipped with intersecting curve cutting and arbitrary angle bevel cutting function; it is mainly used for cutting pipe, tube and oval tube. Its characteristic is high-efficiency and high-precision. Suitable industry like: sport equipment, tube industry, medical equipment, etc.
Parameters
|
Machine Model |
DT-6000/8000 500W |
|
Max. cutting length |
6000mm/8000mm(236 inch / 315 inch) |
|
Laser power |
500W Raycus or IPG brand fiber laser device |
|
laser head |
Friendness or lasermech laser head , with auto sensor, adjust focal distance automatically |
|
Cutting thickness |
0.2-5mm stainless steel / 0.2-6mm carbon steel |
|
Cooling system |
CW-6100 or Sunrise water cooling chiller |
|
Rated power |
10-100% |
|
Machine power |
10KW |
|
Laser wavelength |
1080nm |
|
X,Y-axis location accuracy |
±0.01mm |
|
X,Y-axis repeat location accuracy |
±0.01mm |
|
X,Y-axis fast moving speed |
30m/min |
|
X,Y-axis max cutting speed |
20m/min |
|
Min. cutting line width |
0.02 |
|
Max. cutting thickness |
Stainless steel 3-5mm Carbon steel 4-6 mm |
|
Max. cutting speed |
12m/ min |
|
After-sale service |
Technician available for training and installation |
Machine Configurtaions
|
Terms |
Model |
Parts |
Amount |
Brand or details |
|
1 |
DT-FIBER 500W |
Machine body |
1 set |
DESTINY-TECH |
|
2 |
Fiber laser device |
1 set |
China Raycus or Germany IPG |
|
|
3 |
Laser head |
1 set |
Bochu or Lasermech laser head |
|
|
4 |
Water chiller |
1 set |
Sunrise 1 P or CW 6100 |
|
|
5 |
Servo motor |
3 sets |
Panasonic |
|
|
6 |
Control system |
1 set |
Bochu (Cypcut) system |
|
|
7 |
Auto pipe feeding system |
1 set |
DT-TECH |
|
|
8 |
Valid pipe working length |
6000mm 8000mm |
Working length optional |
|
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,for this kind laser cutting machine ,it's neccessay to send technician to go to your country to install and train if you demand .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
