| Lugar de origen: | ciudad de linyi, china |
| Nombre de la marca: | DESTINY-TECH |
| Certificación: | CE certificate 1 yeas warranty |
| Número de modelo: | DT-1530 |
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | 0-150000USD |
| Detalles de empaquetado: | Caja de madera estándar CE |
| Tiempo de entrega: | 30 días laborables |
| Condiciones de pago: | Avance de T/T |
| Capacidad de la fuente: | 200 sistemas/mes |
| Tipo de láser: | Dispositivo del laser de la fibra | Tipo de enfriamiento: | Sistema de refrigeración por aire y enfriador de agua. |
|---|---|---|---|
| potencia del láser: | Láser de fibra marca Raycus o IPG | Área de trabajo: | 1500mm*3000m |
| Tipo de gas: | Oxígeno o Hidrógeno | Sistema de transmisión: | Piñón de cremallera y carril guía cuadrado. |
| Motor y conductores: | Servomotor y controladores Panasonic de Japón | Garantía: | 1 año para toda la máquina |
| Poder del laser de la fibra: | 1000W |
DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

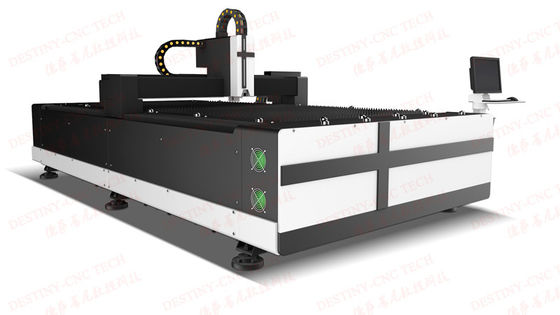

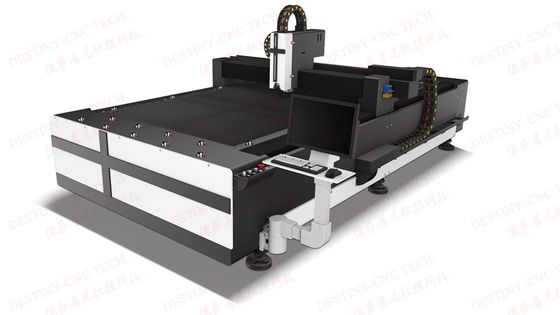

DT-1530 Heavy duty 1000w Fiber laser cutting machine
Machine parameters
|
Machine Model |
DT-1530 Heavy duty1000W |
|
Working area |
1500×3000mm 59×118in |
|
Laser power |
1000W Raycus or IPG brand fiber laser device |
|
laser head |
Friendness or lasermech laser head , with auto sensor, adjust focal distance automatically |
|
Cutting thickness |
0.2-6mm stainless steel / 0.2-10mm carbon steel |
|
Cooling system |
Water chiller |
|
Rated power |
10-100% |
|
Machine power |
15KW |
|
Laser wavelength |
1080nm |
|
X,Y-axis location accuracy |
±0.01mm |
|
X,Y-axis repeat location accuracy |
±0.01mm |
|
X,Y-axis fast moving speed |
30m/min |
|
X,Y-axis max cutting speed |
20m/min |
|
Min. cutting line width |
0.02 |
|
Max. cutting thickness |
Stainless steel 4-6mm Carbon steel 8-10 mm |
|
Max. cutting speed |
15m/ min |
|
Machine size |
4.5×2.5×1.7m |
|
After-sale service |
Technician available for training and installation |
Machine configurations
|
Term |
Model |
Parts |
Amount |
Remark |
|
|
1 |
DT-1530 FIBER laser machine |
Machine bed |
1 set |
DESTINY-TECH |
|
|
2 |
Fiber laser source |
1 set |
China Raycus or Germany IPG |
||
|
3 |
Laser head |
1 set |
Friendness or lasermech |
||
|
4 |
Water chiller |
1 set |
SUNRISE |
||
|
5 |
Servo motor |
3 sets |
Panasonic |
||
|
6 |
Control system |
1 set |
Bochu (Cypcut) system |
||
|
7 |
Rack pinions |
4 sets |
Taiwan HIWIN |
||
|
8 |
Valid working area |
1500 * 3000mm |
|
|
|
Machine Features
DT-1530 Heavy duty Fiber 1000w laser cutting machine adopts the most sophisticated laser source, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine. It has good rigidity and stability with high precision ball screws, linear guide drive run. It is mainly for cutting sheet metal in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting.
Machine advantages
1.Good beam quality: smaller focused spot, cutting lines more sophisticated, higher efficiency, better processing quality
2. Cutting speed: 2 times the same power over carbon dioxide laser cutting machine
3. Stable performance, laser life of up to 100,000 hours
4.Electro-optical conversion rate: Fiber laser cutting machine Electrical and optical conversion rate three times higher than carbon dioxide laser, energy saving
5.Low operating costs: the machine consumes about the same carbon dioxide laser cutting machine for 20-30%
6. Low maintenance costs: no laser working gas; optical fiber transmission, without reflection lenses; may save a lot of maintenance costs
7.Convenient operation and maintenance: fiber optic transmission, no need to adjust the optical path
8.Flexible light guide effect: small, compact, easy to flexible manufacturing needs
Applicable materials
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum.
Application Industries
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool pro cessing, adornment, advertising, metal foreign processing various manufacturing processing industries.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,for this kind laser cutting machine ,it's neccessay to send technician to go to your country to install and train if you demand .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
