| Lugar de origen: | ciudad de linyi, china |
| Nombre de la marca: | DESTINY-TECH |
| Certificación: | CE certificate 2 yeas warranty |
| Número de modelo: | DT-1810 |
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | 0-10000 USD |
| Detalles de empaquetado: | Caja de madera estándar CE |
| Tiempo de entrega: | 10 días laborables |
| Condiciones de pago: | Avance de T/T |
| Capacidad de la fuente: | 500 sistemas/mes |
| Tipo de láser: | Tubo sellado del laser del CO2 | Tipo de enfriamiento: | Sistema de refrigeración del enfriador de agua |
|---|---|---|---|
| potencia del láser: | 80W, 100W, 150W | Área de trabajo: | Se aplican las siguientes medidas: |
| El soplador: | Compresor de aire | Sistema de gasificación: | Extractor de aire y tubo de aire |
DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

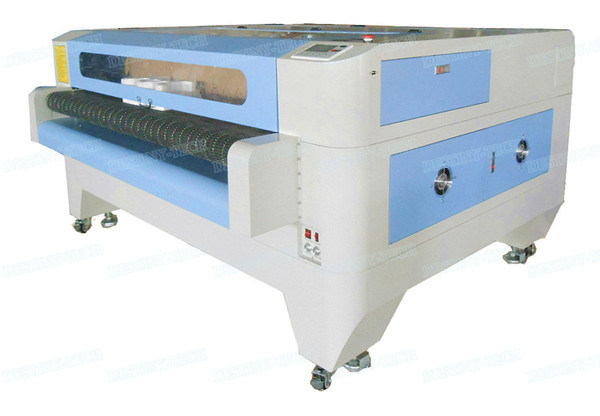

DT-1810 Auto feeding fabric CO2 Laser cutting machine
Machine parameters
|
Machine Model |
DT-1810 Auto feeding |
|
Working Size |
1800*1000 mm / 71 in * 39.4 in ( X * Y axis) |
|
Laser Power |
80w/100w/ 150w |
|
Laser Type |
Sealed CO2 glass laser tube, water-cooling ,10.6nm |
|
Driving System |
3-Phase Stepper Motor &Belts transmission |
|
Cutting Speed |
0-40000mm/min (1575inch/min) |
|
Engraving Speed |
0-70000mm/min (2756 inch/min) |
|
Laser Output Control |
1-100% software setting |
|
Resetting Position Accuracy |
≤±0.01 |
|
Smallest Character |
Chinese 2.0 *2.0mm English 1.0*1.0mm |
|
Highest Scanning precision |
2500 DPI |
|
Power Supply |
220V/50Hz, 110V/60Hz, |
|
Operating Temperature |
0-45℃ |
|
Operating Humidity |
5-95% |
|
Operating System |
DSP CNC Control System in Win XP, Win 7 |
|
Graphic Format Supported |
BMP, PLT, AI, DST, DXF |
|
Software Supported |
Corel draw, Photoshop, AutoCAD, Tajima |
|
Optional device |
Rotary device ,Red light pointer |
|
Color separation |
Yes |
Product descriptions
DT-1810 laser cutting machine with auto feeding system adopts crawler-type worktable,dual laserhead mutual move processing and auto-feeding system, the rolls of the machine are able to roll up the large material automatically,providing the fast cutting speed,high utilization rate of material and continuous cutting.
Applicable Materials
Cloth, fabric, leather, woolen, paper, film etc. soft materials
Applicable Industries
Garment,car inside decoration materials ,leather,toys indsutry, computerized embroidery and clipping, cutting of template, art gift, advertisement decoration,building upholster, package, printing, paper product and other industries.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English,they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
