| Lugar de origen: | ciudad de jinán, china |
| Nombre de la marca: | DESTINY |
| Certificación: | CE and FDA certificate 2 yeas warranty |
| Número de modelo: | DT-9060 |
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | 0-5000 USD |
| Detalles de empaquetado: | Caja de madera estándar CE |
| Tiempo de entrega: | 7 días de trabajo |
| Condiciones de pago: | Avance de T/T |
| Capacidad de la fuente: | 500 sistemas/mes |
| Tipo de láser: | Láser de CO2 | Tipo de enfriamiento: | Refrigerado por agua |
|---|---|---|---|
| potencia del láser: | 60W, 80W, 100W, 150W | Área de trabajo: | 900mm*600m m |

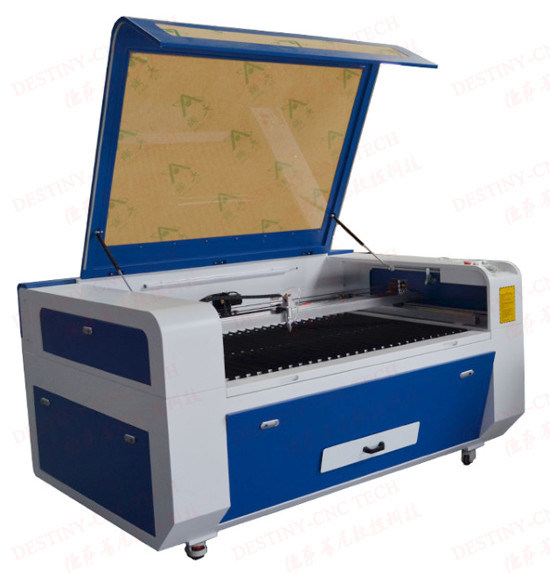

DT 900*600mm CO2 laser engraving and cutting machine
Performance Features:
DT-9060 laser engraving and cutting machine is one most popular laser model.We can make the body as per your different requiement.The machine is high configuration with 3 phase stepper motor laser machine.The standard transmission is stong belt .You can also choose ballscrew servo m otor transmission.DT-9060 double heads laser machine improve the working efficiency.It can engrave and cut at the same time or first to engrave then to cut.
We innovate the DT-9060 laser machine body,its height is most suit to worker.900 *600mm worktable,you can choose oxidated tool section or high precision honeycomb platform as per your materials feature.There are two doors behind and front machine.It extend the working area,easier to put down the materials.You can choose up&down platform or material hutch .
The machine is installed four wheels,it's easier to move ,you can change any places you like.In addition,there are four footstands near the wheels.When you start to use machine,you just put them down on the earth.It can make the laser engraving and cutting more stable.
We adopt advanced DSP control system,and high definition microcomputer control panel with USB outline interface.You can choose the languages,such as Chinese,English,Korean,Russian etc.
Machine parameters
|
Model |
DT-9060 |
|
Laser Power |
80w/100w/150w/180w |
|
Laser Type |
sealed CO2laser tube,water-cooled,10.6um |
|
Work Area |
900 X 600 mm |
|
Cooling Type |
Water-cooled and Protection System |
|
Engraving Scanning Speed |
0-70000 mm/min |
|
Cutting Speed |
0-5000mm/min |
|
Laser Output Control |
1-100% Software Setting |
|
Smallest Character Engraving |
English: 1.0X1.0 mm |
|
Highest Scanning Precision |
2500DPI |
|
Power Supply |
AC 110-220V±10%, 50-60Hz |
|
Operating Temperature |
0°-45°C |
|
Operating Humidity |
5%-95% |
|
Locating Precision |
≤±0.01mm |
|
Supported File Format |
DSTPLTBMPDXFAI |
|
Compatible Software |
TAJIMACORELDRAWPHOTOSHOPAUTOCADAll Type of AUTOCAD Software in cloth |
|
Driving System |
Stepper Electrical Motor |
|
Package Dimension |
1.53*1.3*1.4m |
|
Net Weight |
400 KGS |
|
Gross Weight |
500 KGS |
|
Optional Spare Parts |
Up-down Worktable, Rotary System, Honeycomb Worktable |
|
Removable Spare Parts |
Laser Tube and Lens |
Applicable Industries
Model Industry(construction models, aviation and navigation models and wooden toys),advertisment, decoration, art crafts, electronics, and electric appliances, etc.
Applicable Materials
Non-metal materials such as acrylic, wood planks(light planks),bamboo ware. Double colored boards, paper, leather, shells, coconut shells, ox horns, resin animal grease,ABS boards, lamp shade, ect.
Our laser machines can be customized according to your special needs.
The warranty after-sale service
1).CE and FDA certificate,the machines are produced according to standard.
2).Two years quality guarantee for whole machine except of laser tube and lens ;
3).We have excellent egineers speaking English,they can go to your country to solve your questions of machine you can't solve;
4).The machines delivery is quickly,delivery time is short.
5).24 hours technical support by e-mail, calling or door-to-door service
6).English software, user manual and detailed Videos CD
DESTINY-CNC TECH ideas: To be your counselor, to be your partner, to be your friends.
