| Lugar de origen: | ciudad de linyi, china |
| Nombre de la marca: | DESTINY-TECH |
| Certificación: | CE certificate 2 yeas warranty |
| Número de modelo: | DT-1610 |
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | 0-7000 USD |
| Detalles de empaquetado: | Caja de madera estándar CE |
| Tiempo de entrega: | 7 días de trabajo |
| Condiciones de pago: | Avance de T/T |
| Capacidad de la fuente: | 500 sistemas/mes |
| Tipo de láser: | Tubo sellado del laser del CO2 | Tipo de enfriamiento: | Sistema de refrigeración del enfriador de agua |
|---|---|---|---|
| potencia del láser: | 80W, 100W, 150W, 180W | Área de trabajo: | 1600mm*1000m m |
| El soplador: | Compresor de aire | Sistema de gasificación: | Extractor de aire y tubo de aire |
| CCD: | Cámara de exploración | Área de trabajo CCD: | 300mm*300mm |
DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

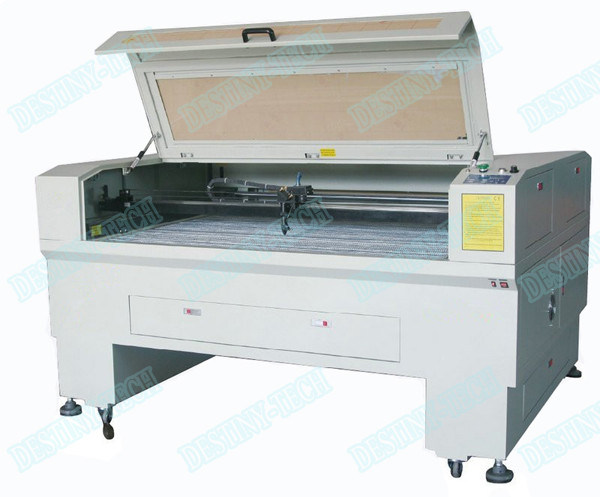

DT-1610 Auto CCD CO2 Laser cutting machine
Machine parameters
|
Machine Model |
DT-1610 auto CCD (300*300mm) |
|
Working Size |
1600*1000 mm / 63 in*39.3 in (X * Y axis) |
|
Laser Power |
80w/100w |
|
Laser Type |
Sealed CO2 glass laser tube, water-cooling ,10.6nm |
|
Driving System |
3-Phase Stepper Motor &Belts transmission |
|
Cutting Speed |
0-40000mm/min |
|
Engraving Speed |
0-70000 mm/min |
|
Laser Output Control |
1-100% software setting |
|
Resetting Position Accuracy |
≤±0.01 |
|
Camera Pixe |
320,000 |
|
Resolution |
< 4500 DPI |
|
Power Supply |
220V/50Hz, 110V/60Hz, |
|
Operating Temperature |
0-45℃ |
|
Operating Humidity |
5-95% |
|
Operating System |
DSP CNC Control System in Win XP, Win 7 |
|
Graphic Format Supported |
BMP, PLT, AI, DST, DXF |
|
Software Supported |
Corel draw, Photoshop, AutoCAD, Tajima |
| Color Separation | Yes |
Machine descriptions
DT series CCD laser cutting machines are specially for deformation of cloth,in the camera positioning visual systerm and cutting down the software work ,ccd laser cutting machine can compensate automatically to pinpoint deformation of the fabric and ensure the accuracy of cutting ,the laser cutting machine with automatic camera positioning will search for the workpiece which is processed after the picture is imported into computer by the vision system machine,it can prevent the inaccuracy of the cutting correctly. Because of the poweful DSP technology of high-end data processing ,specific design and precise machinery
software of mechanical systerm,meticulous in high-speed operation conditions ,cutting lines and curves no deformation rapid continuous curvilinear cutting funtion.
Applicable materials
Fabrics,leather,paper.bamboo ware,acrylic,glass,thin film and canvas,etc.
Applicable industries
Garments sampling,trademark,leather industry,shoemaking,decoration,advertisement industries,etc.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
