| Lugar de origen: | ciudad de linyi, china |
| Nombre de la marca: | DESTINY-TECH |
| Certificación: | CE certificate 2 yeas warranty |
| Número de modelo: | DT-1610 |
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | 0-6000 USD |
| Detalles de empaquetado: | Caja de madera estándar CE |
| Tiempo de entrega: | 7 días de trabajo |
| Condiciones de pago: | Avance de T/T |
| Capacidad de la fuente: | 500 sistemas/mes |
| Tipo de láser: | Tubo sellado del laser del CO2 | Tipo de enfriamiento: | Sistema de refrigeración del enfriador de agua |
|---|---|---|---|
| potencia del láser: | 60W, 80W, 100W, 150W, 180W | Área de trabajo: | 1600mm*1000m m |
| El soplador: | Compresor de aire | Sistema de gasificación: | Extractor de aire y tubo de aire |
DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

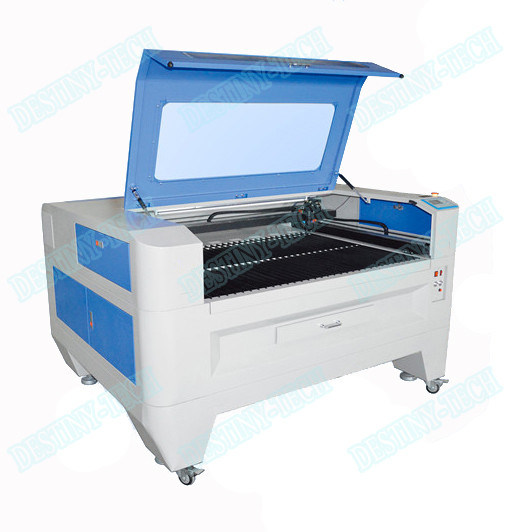

DT-1610 150W CNC CO2 laser cutting machine
Machine parameters
|
Machine Model |
DT-1610 CO2 laser cutting machine |
|
Working Size |
1600mm *1000mm / 63 * 39.4 inch (X*Y axis ) |
|
Laser Power |
80w/100w/150w/180w |
|
Laser Type |
Sealed CO2 glass laser tube, water-cooling ,10.6nm |
|
Driving System |
3-Phase Stepper Motor & Servo motor |
|
Cutting Speed |
0-50000mm/min (1969 inch/min) |
|
Engraving Speed |
0-70000mm/min (2756 inch/min) |
|
Laser Output Control |
1-100% software setting |
|
Resetting Position Accuracy |
≤±0.01 |
|
Transmission type |
Belts transmission & stepper motor or Ballscrew &Servo |
|
Smallest Character |
Chinese 2.0 *2.0mm English 1.0*1.0mm |
|
Highest Scanning precision |
2500 DPI |
|
Power Supply |
220V/50Hz, 110V/60Hz, |
|
Operating Temperature |
0-45℃ |
|
Operating Humidity |
5-95% |
|
Operating System |
DSP CNC Control System in Win XP, Win 7 |
|
Graphic Format Supported |
BMP, PLT, AI, DST, DXF |
|
Software Supported |
Corel draw, Photoshop, AutoCAD, Tajima |
|
Optional device |
Up &down table ,Rotary device ,Red light pointer |
|
Color separation |
Yes |
Machine Descriptions
DT-1610 model is one new design CO2 laser cutting machine .It's similar with DT-1390 laser cutting machine .Its hand handle , wire connectors, machine body , laser reflecting path, machine safe protecting etc. are new design.It's used more safe and easier . And its appearance is easier to be accepted. It's a fashionable products .There is big improvement on this model machine,including moving system and machines features. The outlook is more attractive, separated design is much easy for shipping and moving. Working efficient is much high mean while reduce the labor and lower the cost. This machine proved to be warm welcome by the customers.
Suitable materials
Die board ,wood and plywood board ,Acrylic, Plexiglass, MDF ,leather, film, rubber,plastic, cloth, component materials etc.
Suitable Industry
Die board processing ,double faced adhesive material processing, printing and packing ,advertising decoration , furniture, mode, art and craft etc.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
