| Lugar de origen: | ciudad de linyi, china |
| Nombre de la marca: | DESTINY-CNC TECH |
| Certificación: | CE certificate 1 yeas warranty |
| Número de modelo: | DT-30/50/100 |
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | 0-10000USD |
| Detalles de empaquetado: | Caja de madera estándar CE |
| Tiempo de entrega: | 7 días de trabajo |
| Condiciones de pago: | avance T/T, |
| Capacidad de la fuente: | 500 sistemas/mes |
| Tipo de láser: | Tubo láser de CO2 RF | Tipo de enfriamiento: | Sistema de refrigeración por aire |
|---|---|---|---|
| potencia del láser: | 30W/50W/100W | Área de trabajo: | 100mm*100mm;200mm*200mm;300mm*300mm |
| Garantía: | 1 año para toda la máquina | Dispositivo opcional: | Dispositivo rotatorio |
| Materiales aplicables: | Materiales no metálicos de madera, vidrio, MDF, papel, cuero, etc. |
DESTINY-CNC TECH ideas: To be your counselor, to be your partner, to be your friends.

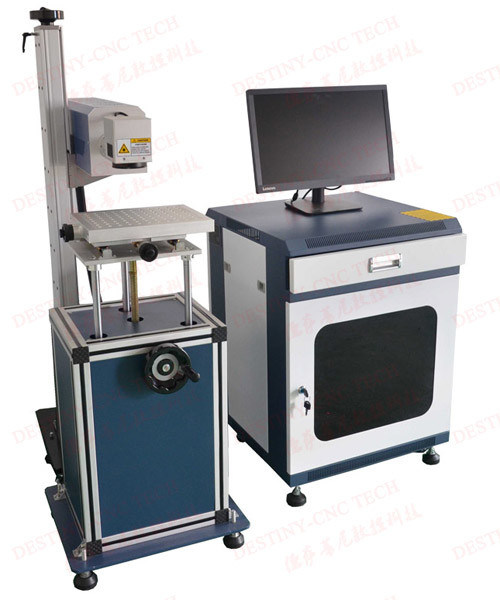

DT-RF tube CO2 30w/50w/100w nonmetal laser marking machine
Machine parameters
|
Model |
|
DT-30 |
DT-50 |
DT-100 |
|
Rated Laser Output Power |
|
30W |
50W |
100W |
|
Marking area |
110*110mm |
200*200mm |
300*300mm |
|
|
Laser wavelength |
10.64μm |
|||
|
Marking depth |
0.01-3mm(depend on the material) |
|||
|
Scan Speed |
0-7000mm/s |
|||
|
Scanning system |
Laser Vibration lens |
|||
|
Pulse Frequency |
20KHz |
|||
|
Power required |
110v/60Hz or 220v/50Hz |
|||
|
Cooling Mode |
Air cooling |
Water cooling |
||
Machine features
RF CO2 laser marking machine adopts CO2 RF drive laser generator and vibration lens.It is integrative design, beautiful structure,high output power,good energy stability, simple and convenient operation, reliable performance, wide application and other characteristics.
Applied the national AUTCAD,CORELDRAW,PHOTOSHOP software input target design easily.Can mark bar code, two-dimension code,graph and words,support PLI,PCX,DXF,BMP.
Computer-control,working in WINDOW platform,English system,easy operation.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
