| Lugar de origen: | ciudad de jinán, china |
| Nombre de la marca: | DESTINY |
| Certificación: | CE &FDA certificate |
| Número de modelo: | DT-1212 |
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | USD 0-6000 |
| Detalles de empaquetado: | Paquete de caja de madera contrachapada estándar |
| Tiempo de entrega: | 0-10 días |
| Condiciones de pago: | Por t/t |
| Capacidad de la fuente: | 1000 juegos/mes |
| Tipo: | cableado | solicitud: | EMPRESA |
|---|---|---|---|
| Estado de los productos: | Existencias |

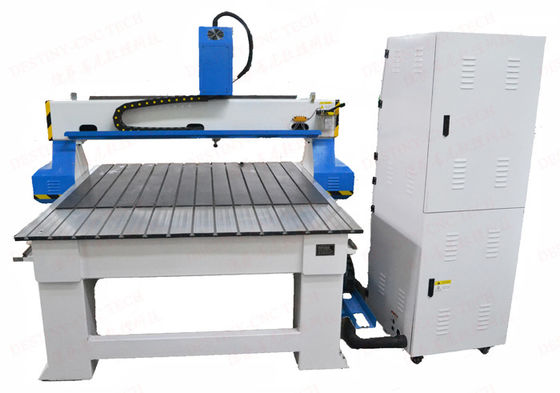

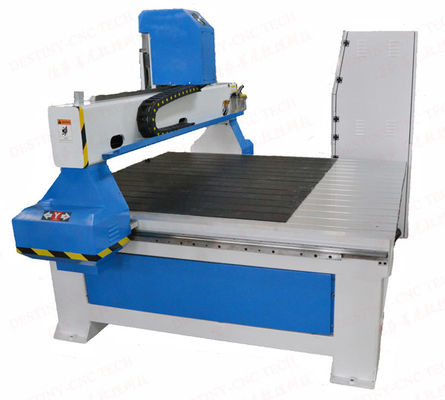

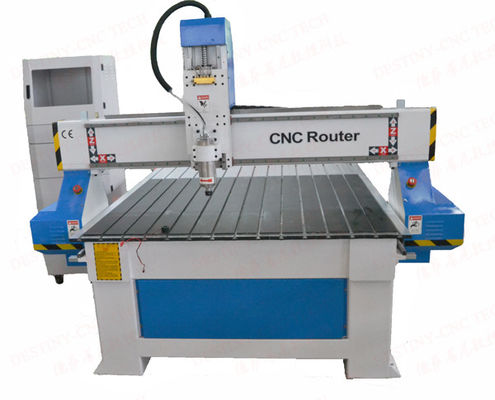

Machine Features
1.DT -1212 is best choice for small piece, Medium size woodworking, because of the humanity design; it is very good for advertising working.
2. Designer perfectly, select the best machine accessories, to minimize the failure rate preferred.
3. Imported high-precision Hiwin Rail Linear Bearings, smooth movement, to ensure that the machine tools high-precision.
4. High-performance driven motor to ensure that the machines high speed and accuracy
5. With T-slot table, holding the materials with clamps, High precision, you can do many jobs for sign making, wood artwork, all material for Sign making, even for wood working.
Applications
Advertising industry: acrylic, color plate, PVC, ABS board, aluminum, and aluminum panels carved V-shaped groove cut, color portrait, three-dimensional billboards, all kinds of signs, badges, seat plate, copper, font, fonts, each class logos, trademarks and so on.
Woodworking: furniture, musical instruments, manufacturing, wooden handicrafts, art model, art font characters, logos, flat plate engraving, wood furniture, art murals, MDF paint doors, composite doors, windows and doors cupboard, bedside cabinets, wall relief sculpture cutting, decorations processing, gift wrap, wave board, countertop appliances, sporting goods, industrial products and other wooden surfaces and three-dimensional shape cutting.
Mold industry: can engrave all kinds of mold, wood mold, matrix, aviation wooden mold, propeller, building models, sand table model, model boats, automotive foam mold.
Technical Parameters
| Model | DT-1212 |
| X,Y working area | 1200×1200mm |
| Z working area | 150mm-250mm |
| Table size | 1200×1200mm |
| Max. Speed | 5m-6m/min |
| Power (not include the spindle) | 400w |
| Frame structure | steel structure |
| Working delicacy | 0.01~0.025mm |
| Repositioning Accuracy | 0.05mm |
| X,Z Structure | round orbit, ball screw |
| Y Structure | Hiwin linear guide rail, ball screw |
| Control system |
Weihong control system (computer control). (option: DSP control system with USB interface) |
| Spindle Power Motor | 1.5Kw water cooling spindle (option: 2.2KW, 3KW,4.5KW) |
| Spindle rotating speed | 0-24000rpm/min |
| Drive Motors | Stepper system |
| Working Voltage | AC220V/50Hz |
| Command Language | HPGL,G cord*.u00*.mmg*plt |
| Running Environment | Temperature: 0 ~ 45 Relative humidity: 30% ~ 75% |
| Surrounding for software | Windows98/2000/xp |
| options | mist cooling system and flume |
| Vacuum system and Dust collector |
